ISM422

The ISM422 Stereo Rack Mixer brings Prosonar to the venues and racks of the hospitality industry – this mixer is perfect for anything from multiple-source music playback to real DJ mixing, and makes a specifically great choice when vocal presentations are needed, since it offers two microphone inputs with full EQ and adjustable talkover, which facilitates the use of a common combination of one wired and one wireless microphone. Installation-specific features like the maximum volume limitation and the Phoenix-Connectors make the setup fast and the operation safe, even with untrained and occasional users like waiters or fitness trainers. From commercial background music systems to pubs and fitness clubs – this mixer fits them all.

FEATURES

  • 2x Switchable Phono (Line)/Line stereo inputs
  • 2x Switchable Line/Line stereo inputs (USB optional)
  • Front-Panel 3.5mm stereo TRS input for one Line channel
  • 1x Balanced stereo Front-of-House (FOH) input to connect the output of a stage mixer to the venue’s main sound system
  • All stereo inputs with Gain control and Signal/Peak-LED
  • 2x Mic inputs with rear-side 1/4” TRS connectors
  • Mic1 with additional versatile front-side Combo connector
  • Mutual voice-specific 3-Band EQ plus “on air” switches for mic inputs
  • Adjustable Talkover for Mic inputs
  • 45mm smooth dual-rail channel faders
  • Master section with two outputs and assignable dual level meter

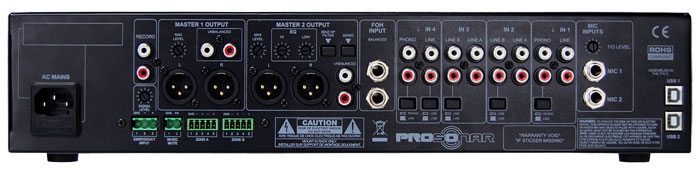

  • Both master outputs balanced and unbalanced on rear panel
  • Balanced master outputs both on XLR and Phoenix connectors
  • 3-band EQ for Master 1 on front panel
  • 2-band EQ for Master 2 on rear panel
  • Each master output with adjustable maximum output level on rear side to avoid exceeding allowed system volume by user
  • Master 2 with 80Hz Low-pass filter and mono switch for possible connection of limited bandwith background music systems
  • External Music Mute contact to shut down master output externally
  • External Emergency input with adjustable volume for emergency signal and automatic shutdown of music signal
  • PFL section with volume control and front-side 6.3mm stereo jack
  • Unbalanced record output
  • CE/ROHS compliant



USB OPTION

Two USB options are available for the ISM422:

  • Twin-USB option with two USB inputs which can be assigned to channels 2 and 3 (model code ISM422USB-T)
  • Single-USB option with one USB input which can be assigned to channel 4 (model code ISM422USB-S)



SPECIFICATIONS

Audio

  • Signal/Noise >82dB (Line)
  • Crosstalk Damping >65dB (Line)
  • THD <0.05% (Line)
  • Frequency response 20Hz – 20 kHz

General

  • AC IN (EU version) AC220-250V~ 50Hz
  • AC IN (US version) AC110-120V~ 60Hz
  • Power consumption max. 18W
  • Dimensions W483xH88xD183.5mm
  • Weight 2.8 kg



OEM OPTIONS

The ISM422 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • Knob style and colour (various knob styles available)
  • Cabinet painting colour
  • Silkscreen artwork and colour
  • Packaging artwork
