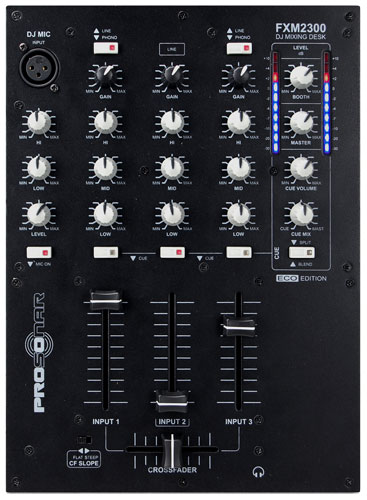

If there is anything to be omitted on the super-popular FXM2300 to meet more demanding budget restrictions, then it’s the channel LED meters, the USB port and the dual rail faders. We did so and created the FXM2300E DJ Mixing Desk to give a Prosonar mixer to those who want the quality but don’t want to pay the price. Still, three stereo inputs with Kill-EQs and a crossfader make this console very flexible for mixing, while the dedicated microphone input with voice-specific EQ allows proper vocal presentations. The master outputs, with the main output being balanced, and a configurable, powerful headphone section make this mixer a valuable entry-level choice for those with greatest care for value in a mixer.


  • 2x switchable Phono (Line)/Line stereo inputs
  • 1x Line stereo input
  • All stereo inputs with Gain and 3-band EQ (+12/-26dB)
  • 1x Mic input with XLR connector and voice-specific 2-band EQ plus “on air” switch
  • 60mm channel faders
  • 45mm dual-rail crossfader for channels 1 and 3 with Steep/Flat curve switch
  • Master section with level control and dual level meter
  • Additional Booth output
  • PFL section with PFL/Main mix control and Blend/Split option
  • Powerful headphones output with 6.3mm stereo jack

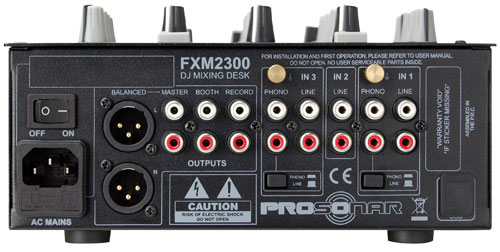

  • Balanced and unbalanced Main output
  • Unbalanced record output
  • CE/ROHS compliant




  • Signal/Noise >82dB (Line)
  • Crosstalk Damping >65dB (Line)
  • THD <0.07% (Line)
  • Frequency response 20Hz – 20 kHz


  • AC IN (EU version) AC220-250V~ 50Hz
  • AC IN (US version) AC110-120V~ 60Hz
  • Power consumption max. 16W
  • Dimensions W214xH294xD104mm (85mm mounting depth)
  • Weight 2.4 kg



The FXM2300E can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • Knob style and colour (various knob styles available)
  • Cabinet painting colour
  • Silkscreen artwork and colour
  • Packaging artwork
