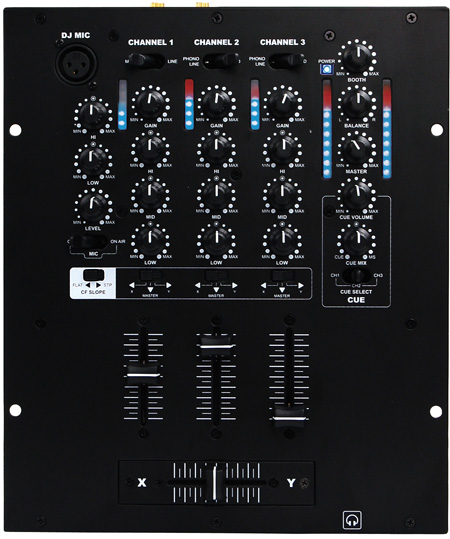

TSM322 / (FX)

Looking for a fully featured 3-channel mixer at an unbeatable price/value ratio, there is no way to ignore the TSM322, Prosonar’s most popular choice of its “Turntablist” series. It comes with three stereo inputs out of which one can also be used as a 2nd microphone input, while the 1st microphone input occupies its own dedicated input channel. All inputs are equipped with gain controls, level meters  and equalizers. Further flexibility and comfort is added by means of an assignable and front-detachable crossfader, and a comprehensive prelistening section. Two master outputs, one of them balanced, and an internal power supply for highest audio dynamics complete the feature set of this unit. This model is also available with additional DSP effects processors as TSM322FX.

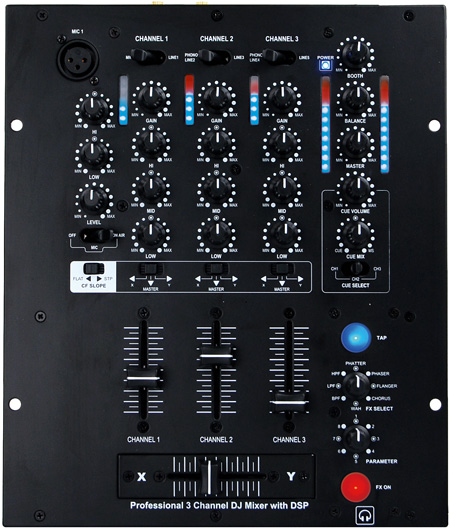

FX Version

The TSM322FX adds a sophisticated digital effects processor to the popular feature set of the TSM322. The DSP-based processor is specifically developed for DJ applications and allows to set the time basis for applicable effects by tapping along the music, plus to set the chosen effects’ intensity with a further rotary control. The 8 available effects do not only include the popular Flanger/Phaser effects, but also stunning modulated HighPass and LowPass filters and a StutterGate. This allows for a great variety of truly useful, beat-matching, DJ-focused effects.



  • 3x switchable stereo inputs (2xPhono(Line)/Line, 1xLine/Mic)
  • Stereo inputs with gain control, 5-LED “neon flow” level meter and  3-band EQ (+12/-26dB)
  • 1x Mic input with XLR input connector and voice-specific 2-band EQ plus “on air” switch
  • Smooth 45mm channel faders
  • 45mm dual-rail crossfader with Steep/Flat curve switch
  • Crossfader assignable and front-detachable
  • Master section with level control, balance control and dual  10-LED “neon-flow” level meter
  • Booth output separately adjustable
  • PFL section with level control and seamless PFL/Main mix function
  • Powerful headphones output with 6.3mm stereo jack on front side of unit

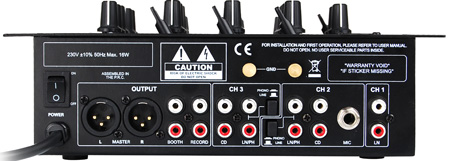

  • Balanced and unbalanced Main output
  • Unbalanced Record output
  • Internal symmetrical power supply for high audio dynamics
  • CE/ROHS compliant

Additonal features for FX version:

  • DSP effects processor for the master signal with 8 effects: Phaser, Flanger, Chorus, Gate, VCF Lowpass, VCF HighPass, Subsynth, Phatter (Robot)
  • Effects time base (where applicable) can be set by tap function, and intensity can be adjusted in 8 steps
  • Large effects on/off button with backlight

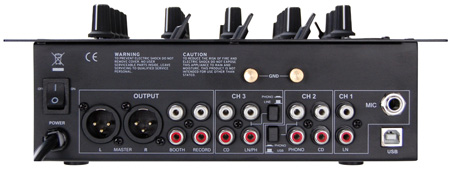

The TSM322 can optionally be fitted with an internal USB soundcard which is assignable to Channel 2.




  • Signal/Noise >82dB (Line)
  • Crosstalk Damping >65dB (Line)
  • THD <0.07% (Line)
  • Frequency response 20Hz – 20 kHz


  • AC IN (EU version) AC220-250V~ 50Hz
  • AC IN (US version) AC110-120V~ 60Hz
  • Power consumption max. 16W
  • Dimensions W254xH300xD88mm (69mm mounting depth)
  • Weight 2.8 kg



The TSM322 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • Knob style and colour (various knob styles available)
  • Cabinet painting colour
  • Silkscreen artwork and colour
  • Packaging artwork
