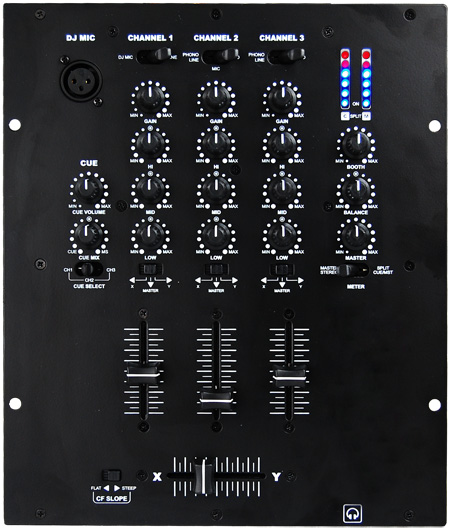

TSM321 / (FX)

Right at the core of Prosonar’s “Turntablist” series, the 3-Channel format presents the essence of what most DJ’s need whilst the TSM321 is the budget choice in this class. Coming with three stereo inputs out of which one can serve as a microphone input, with all inputs equipped with gain control and 3-band Kill EQ, this unit offers further flexibility by means of its assignable and front-detachable crossfader. A comprehensive prelistening section and two master outputs, one of them balanced, complete the feature set of this unit. Unlike other mixers of its class, the TSM321 sports an internal power supply, making it superior in audio dynamics to most of its competitors. This model is also available with additional DSP effects processor as TSM321FX.

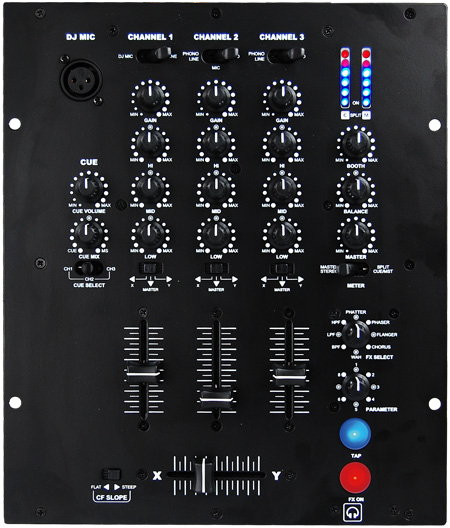

FX Version

The TSM321FX adds a sophisticated digital effects processor to the proven feature set of the TSM321. The DSP-based processor is specifically developed for DJ applications and allows to set the time basis for applicable effects by tapping along the music, plus to set the chosen effects’ intensity with a further rotary control. The 8 available effects do not only include the popular Flanger/Phaser effects, but also stunning modulated HighPass and LowPass filters and a StutterGate. This allows for a great variety of truly useful, beat-matching, DJ-focused effects.



FEATURES

  • 3x switchable stereo inputs (1xPhono(Line)/Line, 1xPhono(Line)/Line/Mic, 1xLine/Mic)
  • Stereo inputs with gain control and 3-band EQ (+12/-26dB)
  • Smooth 45mm channel faders
  • 45mm dual-rail crossfader with Steep/Flat curve switch
  • Crossfader assignable and front-detachable
  • Master section with level control, balance control and dual 6-LED level meter
  • Master level meter assignable to Master (stereo) or Master/PFL split operation
  • Booth output separately adjustable
  • PFL section with level control and seamless PFL/Main mix function
  • Powerful headphones output with 6.3mm stereo jack on front side of unit

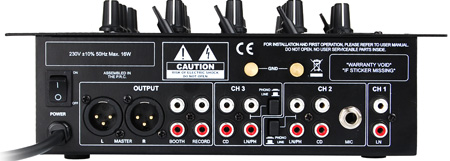

  • Balanced and unbalanced Main output
  • Unbalanced Record output
  • Internal symmetrical power supply for high audio dynamics
  • CE/ROHS compliant

Additonal features for FX version:

  • DSP effects processor for the master signal with 8 effects: Phaser, Flanger, Chorus, Gate, VCF Lowpass, VCF HighPass, Subsynth, Phatter (Robot)
  • Effects time base (where applicable) can be set by tap function, and intensity can be adjusted in 8 steps
  • Large effects on/off button with backlight



SPECIFICATIONS

Audio

  • Signal/Noise >82dB (Line)
  • Crosstalk Damping >65dB (Line)
  • THD <0.07% (Line)
  • Frequency response 20Hz – 20 kHz

General

  • AC IN (EU version) AC220-250V~ 50Hz
  • AC IN (US version) AC110-120V~ 60Hz
  • Power consumption max. 16W
  • Dimensions W254xH300xD88mm (69mm mounting depth)
  • Weight 2.8 kg



OEM OPTIONS

The TSM321 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • Knob style and colour (various knob styles available)
  • Cabinet painting colour
  • Silkscreen artwork and colour
  • Packaging artwork
