The FXM2500E DJ Mixing Desk is the entry-level choice into the popular 4+1 channel format for the semi-pro DJ who does not need USB connectivity on-board, and may not require the extended lifetime and smoothness of the dual-rail faders fitted on the FXM2500USB. Four stereo inputs with Kill-EQs and a fully assignable crossfader make this console however very flexible for mixing, while the dedicated microphone input with voice-specific EQ allows proper vocal presentations. Two master outputs, with the main output being balanced, and a configurable, powerful headphone section make this mixer a great choice for the discerning semi-pro.


  • 2x switchable Phono (Line)/Line stereo inputs
  • 1x Line stereo input
  • 1x switchable stereo Line/mono Microphone input
  • All stereo inputs with Gain and 3-band EQ (+12/-26dB)
  • 1x Mic input with XLR connector and voice-specific 3-band EQ plus “on air” switch
  • 60mm channel faders
  • Fully assignable 45mm dual-rail crossfader with Steep/Flat curve switch
  • Master section with level control and dual level meter
  • Additional Booth output
  • PFL section with PFL/Main mix control and Blend/Split option
  • Powerful headphones output with 6.3mm stereo jack

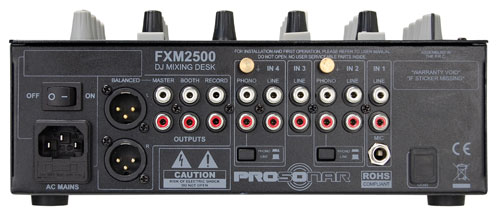

  • Balanced and unbalanced Main output
  • Unbalanced record output
  • CE/ROHS compliant




  • Signal/Noise >82dB (Line)
  • Crosstalk Damping >65dB (Line)
  • THD <0.07% (Line)
  • Frequency response 20Hz – 20 kHz


  • AC IN (EU version) AC220-250V~ 50Hz
  • AC IN (US version) AC110-120V~ 60Hz
  • Power consumption max. 18W
  • Dimensions W254xH295xD104mm (85mm mounting depth)
  • Weight 2.8 kg



The FXM2500E can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • Knob style and colour (various knob styles available)
  • Cabinet painting colour
  • Silkscreen artwork and colour
  • Packaging artwork
