FXM3000VCA

The FXM3000 DSP Effects DJ Mixer brings the acclaimed BPM-based DSP effects of Prosonar’s 4-chanel mixers into the discerning homeboy’s bedroom. Compact in size, yet powerful in sound, this mixer combines an obstacle-free crossfader area for the most advanced scratch techniques with three fully-fledged stereo channels for ultimate spinning artistry, and a balanced studio-grade mic input to add vocal performances. 8 stunning beat-synchronized digital effects spice up the sound with extra kick, and make this mixer every semi-pro’s dream machine.

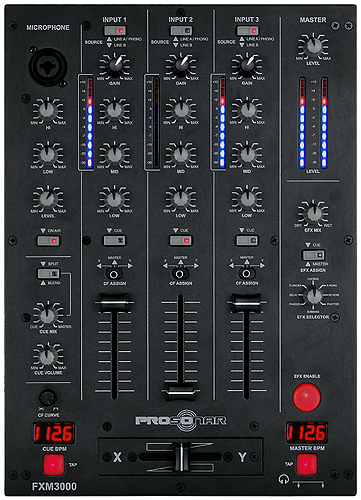

FEATURES

  • 3x switchable Phono (Line)/Line inputs
  • Gain, 3-band EQ (+12/-26dB) and input level meter for all stereo channels
  • 1x DJ Mic with Gain, 2-band EQ and “on air” switch
  • Smooth dual-rail 60mm channel faders
  • Assignable, front-detachable, 45mm dual-rail VCA crossfader with adjustable curve
  • Master section with dual level meter
  • PFL section with split/blend option and PFL/Main mix control
  • Powerful headphones output with both 6.3mm and 3.5mm stereo jacks
  • DSP-based dual beatcounter with manual tap function, assigned to Main and PFL
  • DSP-based effects section with 8 DJ-specific effects (Chorus, PingPong, Reverb, Phatter, Bass Extend, Phaser, Delay, Flanger), synchronized to Main BPM value
  • Light-touch and backlit effects on/off button

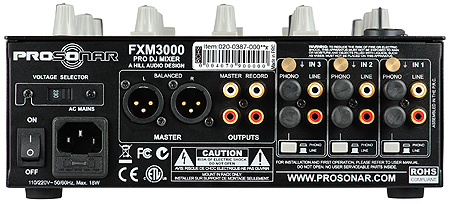

  • Balanced and unbalanced Main output
  • Unbalanced record output
  • CE/ROHS compliant



USB OPTION

A dual USB input option is available, with signal assignable to channels 1 and 3, and optional bidirectional Record function (model code: FXM3000USB)



SPECIFICATIONS

Audio

  • Signal/Noise >77dB (Line)
  • Crosstalk Damping >65dB (Line)
  • THD <0.07% (Line)
  • Frequency response 20Hz – 20 kHz

General

  • AC IN (EU version) AC220-250V~ 50Hz
  • AC IN (US version) AC110-120V~ 60Hz
  • Power consumption max. 24W
  • Dimensions W240×H335x D104mm (85mm mounting depth)
  • Weight 3.2 kg



OEM OPTIONS

The FXM3000 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • Knob style and colour (various knob styles available)
  • Cabinet painting colour
  • Silkscreen artwork and colour
  • Packaging artwork
