Two turntables or desktop CD/Media decks and this savvy little mixer make any event a granted success! The FXM1200USB DJ Mixing Desk has the right form factor to fit inbetween the decks and the right feature set to deliver stunning mixes. Two stereo inputs with Kill-EQs and a crossfader with adjustable curve are accompanied by a comprehensive prelistening section and a fully-featured microphone input. A USB soundcard is fitted as a standard and allows replay of media files from a PC in appropriate quality. While small in its appearance, the FXM1200 has an internal power supply for full audio dynamics and a balanced master output to feed larger sound systems – unlike other mixers of its size, it is hence a truly professional choice.

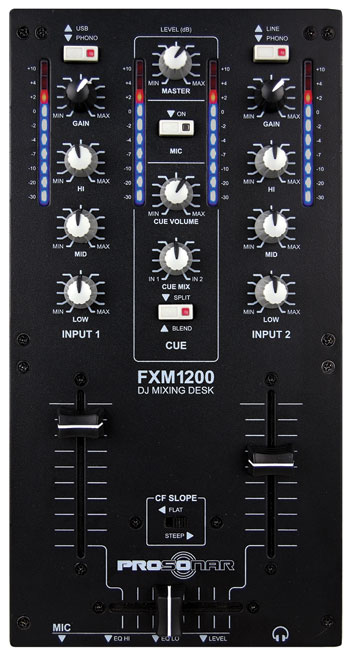

  • 1x switchable Phono (Line)/Line stereo input
  • 1x switchable Phono (Line)/USB stereo input
  • Both stereo inputs with Gain, 3-band EQ (+12/-26dB) and 10-LED level meter for greatest ease of setting gain

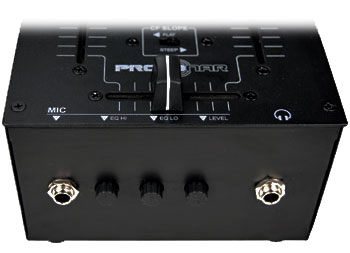

  • 1x Mic input with 1/4” TRS input connector and voice-specific 2-band EQ plus “on air” switch
  • Smooth dual-rail 60mm channel faders
  • 45mm dual-rail crossfader with Steep/Flat curve switch
  • Master section with level control and dual 10-LED level meter
  • PFL section with PFL/Main mix control and Blend/Split option
  • Powerful headphones output with 6.3mm stereo jack

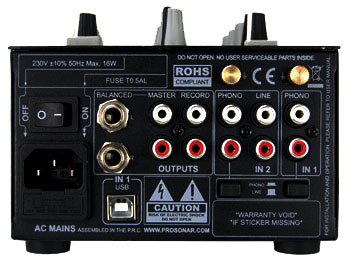

  • Rear side USB stereo replay/record port (type B)
  • Balanced and unbalanced Main output
  • Unbalanced record output
  • Internal symmetrical power supply for high audio dynamics
  • CE/ROHS compliant




  • Signal/Noise >82dB (Line)
  • Crosstalk Damping >65dB (Line)
  • THD <0.07% (Line)
  • Frequency response 20Hz – 20 kHz


  • AC IN (EU version) AC220-250V~ 50Hz
  • AC IN (US version) AC110-120V~ 60Hz
  • Power consumption max. 16W
  • Dimensions W140xH270xD104mm (85mm mounting depth)
  • Weight 2.0 kg



The FXM1200USB can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • Knob style and colour (various knob styles available)
  • Cabinet painting colour
  • Silkscreen artwork and colour
  • Packaging artwork
