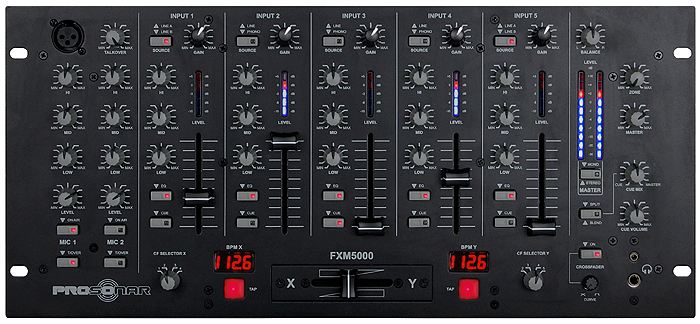

The FXM5000 Dual-BPM DJ Rack Mixer perfectly balances the requirements of mobile DJs and other portable applications, like fitness studios or dance schools. Maximum control of sound is offered on minimum space, and the precise, DSP-powered dual beatcounter helps setting the right speed for either the perfect mix or correct choreographic tempo match. Extensive microphone features with auto-talkover seamlessly integrate voice into the music even using a wireless microphone. The recessed connection panel allows space-saving rack-mounting and makes this mixer the most compact choice for professional sound reproduction systems.


  • 2 switchable Line/Line inputs
  • 3 switchable stereo Phone(Line)/Line inputs
  • All stereo inputs with Gain, 3-band EQ (+12/-26dB), EQ on/off switch, and input level meter
  • 2 dedicated DJ microphone inputs with Gain, 3-band EQ and On-Air switch
  • Microphones individually assignable to adjustable auto-talkover
  • Smooth dual-rail 60mm channel faders
  • Assignable, front-detachable, 45mm dual-rail VCA crossfader with adjustable curve and on/off switch
  • Master section with balance control, dual level meter and stereo/mono switch
  • Additional Booth output
  • PFL section with split/blend option and PFL/Main mix control
  • Powerful headphones output with both 6.3mm and 3.5mm stereo jacks
  • DSP-based dual beatcounter with manual tap function, assigned to each crossfader side
  • Balanced and unbalanced Main output
  • Balanced subwoofer output with active crossover and adjustable crossover frequency/level
  • Unbalanced Booth output
  • Unbalanced Record output

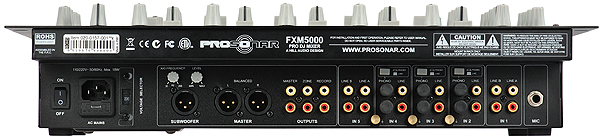

  • Special cabinet design with recessed connector plane for space-saving rack mounting
  • CE/ROHS compliant



A dual USB input option is available, with signal assignable to channels 1 and 5, and optional bidirectional Record function (model code FXM5000USB)




  • Signal/Noise >77dB (Line)
  • Crosstalk Damping >65dB (Line)
  • THD <0.07% (Line)
  • Frequency response 20Hz – 20 kHz


  • AC IN (EU version) AC220-250V~ 50Hz
  • AC IN (US version) AC110-120V~ 60Hz
  • Power consumption max. 28W
  • Dimensions W483×H220x D104mm (85mm mounting depth)
  • Weight 5.2 kg



The FXM5000 can be modified to suit the customer’s needs. The following options are available (only on order – not for retrofit):

  • Knob style and colour (various knob styles available)
  • Cabinet painting colour
  • Silkscreen artwork and colour
  • Packaging artwork
